Beiben 2638 tracteur camions

Beiben 2638 tracteur camions

inquiry_ico
Product Details

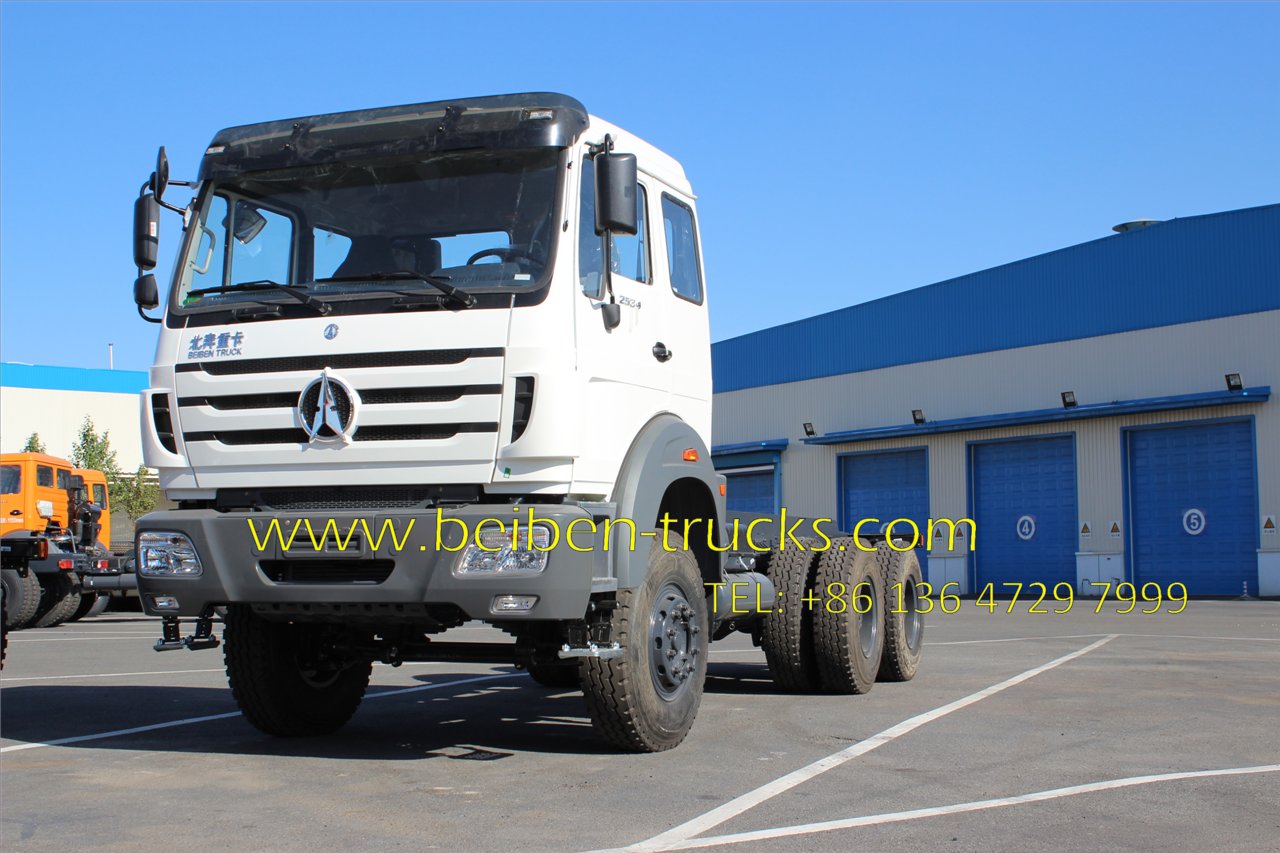

Beiben 2638 tracteur camions

 beiben 2534 tracteur camions
Function:

Construction,  Mining and quarries,

Heavy duty material transportation

Dry Bulk,  Building Material, Waste
Agriculture,  FreightPlant Hire, Military

Advantage:

World famous Bezn technology  tractor truck,
Mercedez-benz technology
China best quality beiben tractor truck spplier
.Genuine beiben tractor truck parts service
Congo,kenya, tanzania,ghana, algeria local agent

  CEEC TRUCKS 20 years experience on beiben 2538 tractor trucks exporting.

Specification:

Similar key words congo beiben 2534 tracteur camions, beiben 2538 tracteur camions, north benz 2538 tracteur camions, china beiben tracteur camions supplier.
China famous brand beiben 2534 tractor truck,for using in logistic, seaport, airport, fuel transporation.
beiben 2534 tracteur camions price
Baotou beiben 2538 tractor trucks are widely applied for high way , seaport, logistic, fuel oil project transportation. With reliable benz technology, benz 6*4 tractor truck are well accepted in congo, kenya, tanzania and nigeria.
  beiben 2638 tractor camions
Our prices are considerably lower than European, American and Asian competitors; including Mercedes Benz Actros 2538tractor trucks..

Beiben 2638SZ tractor truck  /6×4/3450+1450/Long Cab/LHD
Dimension 7136*2495*3180mm
Approaching angle/Departure angle 26/64°
Overhang(front/rear) 1410/825mm
Wheel base 3450+1450mm
Max speed 90km/h
Curb weight 9200kg
Max towing weight 36900kg
Max loading on fifth wheel, Permitted(kg)
15670kg
Slope climbing capability Max.40%
Engine Model WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 280/2200 (kw/rpm)
Max.torque 1460/1200-1600(Nm/rpm)
Emission stantard EuroⅢ
Fuel tanker capacity 400L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
Rear Non-free standing stablization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system TAS85,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
Model
JOST ∮90 single direction
Height of fifth wheel(mm) (unload)
1410
Radius of front gap (mm)
2300
Radius of rear slew (mm)
2600
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00-R20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
beiben 2638 tractor camions
beiben 2638 tractor camions
beiben 2638 tractor camions
beiben 2638 tractor camions
beiben 2638 tractor camions
beiben 2638 tractor camions
beiben 2638 tractor camions

Model Engine Model Rated Power Payload Driving Mode
Beiben 1834S
WD615.34 340Hp 40Ton 4x2
Beiben 2538 WP10.380 380 Hp 45 Ton 6x4
Beiben 2634 WP10.340 340 Hp 40Ton 6x4
Beiben 2642 WP12.420 420 Hp 48 Ton 6x4
Beiben 2642 WP10.420 420 Hp 50 Ton 6x4
Beiben 2638S WP 10.380 380 hP 48 T 6x4
Beiben 2638 WP10.380 380 Hp 45 Ton 6x4
Beiben 2638S WP 10.380 380 hP 50 T 6x4
Beiben2642 WP 10.420 420 Hp 60 T 6x4
Beiben 2542S WP12.420E32 420 Hp 50 T 6x4
Beiben 1630A WP10.300N 300 Hp 30 T 4x4
Beiben 2534 WP 10.336 336 Hp 50 Ton 6x6
Beiben 2638 WP10.380 380 Hp 50 Ton 6x4
