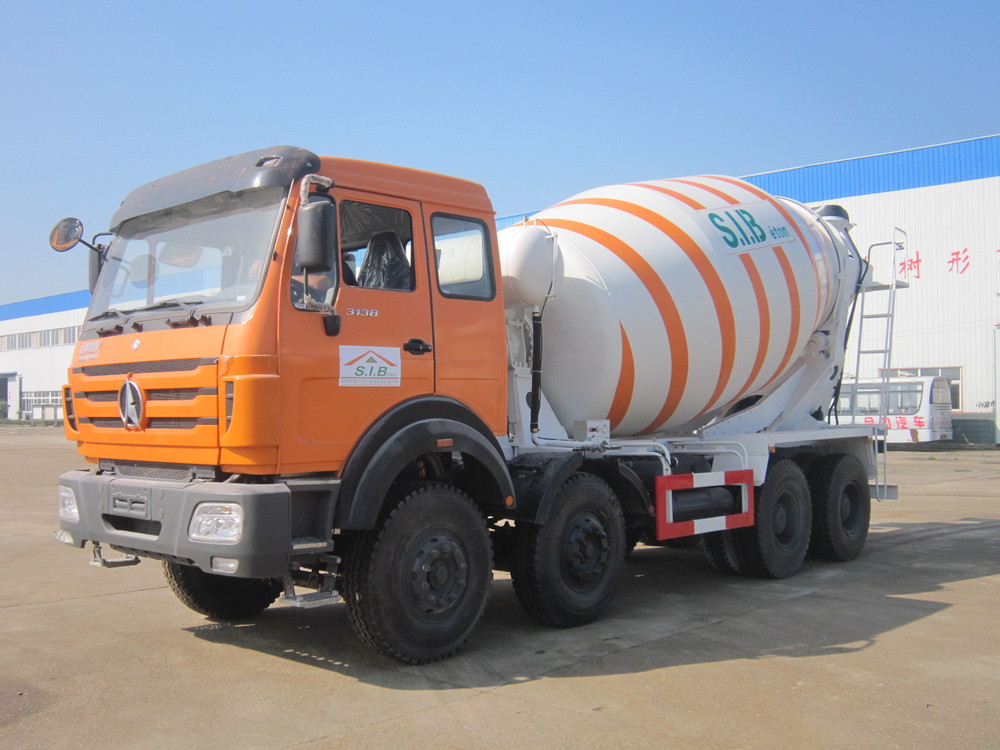

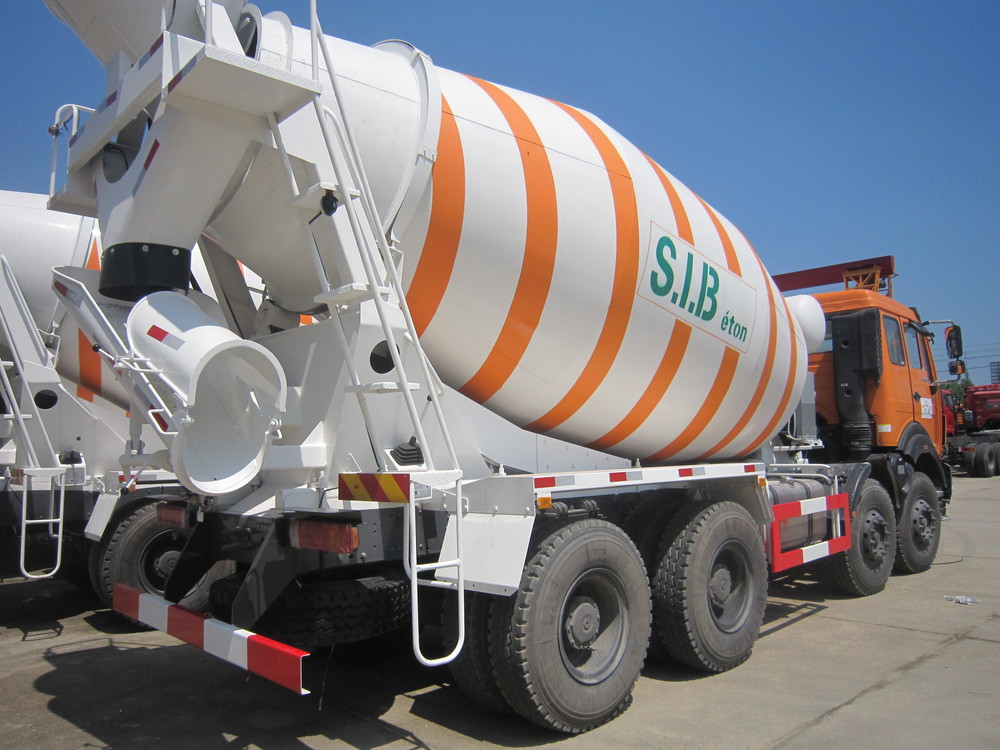

Heavy Duty Beiben 8*4 Concrete Mixer Truck 12Wheel Beiben Mixer Truck Concrete 8cbm Beiben concrete Mixing truck

Heavy Duty Beiben 8*4 Concrete Mixer Truck 12Wheel Beiben Mixer Truck Concrete  8cbm Beiben concrete Mixing truck

             The mixer volume can be 6cbm 8cbm 9cbm 10cbm 12cbm
Heavy Duty Beiben 8*4 Concrete Mixer Truck 12Wheel Beiben Mixer Truck Concrete 8cbm Beiben concrete Mixing truck
 Heavy Duty Beiben 8*4 Concrete Mixer Truck 12Wheel Beiben Mixer Truck Concrete 8cbm Beiben concrete Mixing truck


 More Details
Heavy Duty Beiben 8*4 Concrete Mixer Truck 12Wheel Beiben Mixer Truck Concrete 8cbm Beiben concrete Mixing truck
Heavy Duty Beiben 8*4 Concrete Mixer Truck 12Wheel Beiben Mixer Truck Concrete 8cbm Beiben concrete Mixing truck





Main parameter

 Chassis Technical Specification
Product NameBei Ben 8*4 Concrete Mixer Truck
Chassis                                                                                                        ND1316D35J
Fuel type Diesel
Cabin one and half row
Vehicle information(mm)Overall dimensions (L×W×H)10550*2500*3990
Wheel base       1500+3550+1450
Min. ground clearance 500
Weight data (kg)G.V.W31000
Curb weight (chassis)16500
Max payload25t
Whole vehicle
main performance
Max. speed (km/h)90
Max. slope of climb (%)30
EngineModelWP10.336N
Maximum power247kw / 336hp
Number of cylinders6
Displacement (ml)9726
Emission standardEuro 3
Gear boxModel 9T-160
Axle Front Load capacity (ton)13t(double axle)
Rear Load capacity (ton)18t(double axle)
SuspensionLeaf spring12/12/13+7
Steering Wheelleft/right hand driveoptional
Brake systemService brake Air braking
Electric deviceRated voltage24V
Tyres & Quantity12.00R20 &12+1

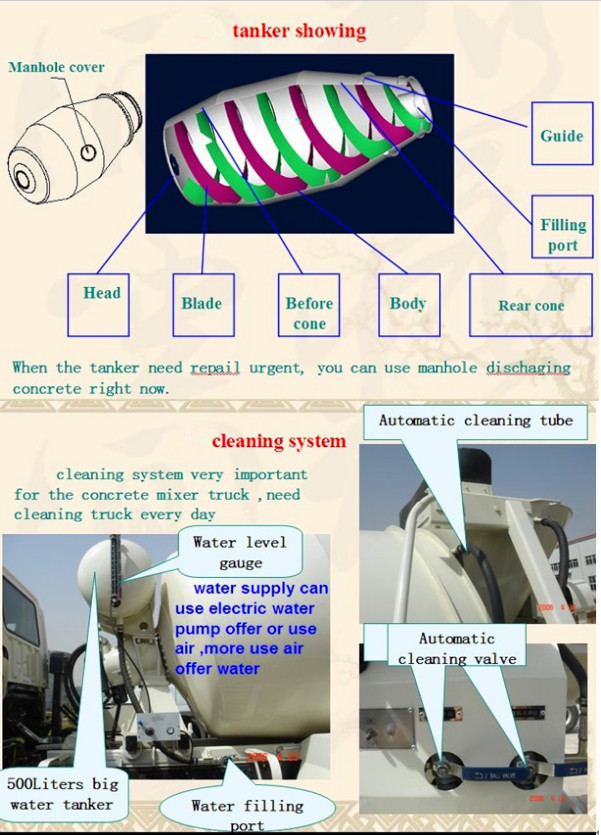

Concrete mixer truck technology information
Mixer drum parameterTanker material16MnQ345
Fact cubage10~14cbm
Filling speed≥2.8cbm/min
Unloading speed≥1.2cbm/min
Discharge reside ratio≤0.5%
Mixer drum rotation speed0~12(rpm)
Driving systemReducerItaly Brand
Hydraulic pumpItaly Brand or USA Brand
Hydraulic motorJapanese Brand
Heat deviceMade in China
